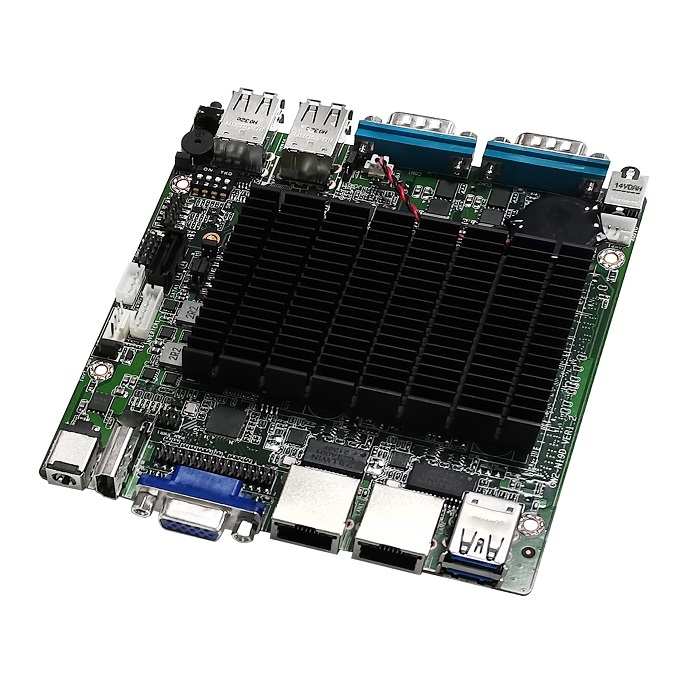

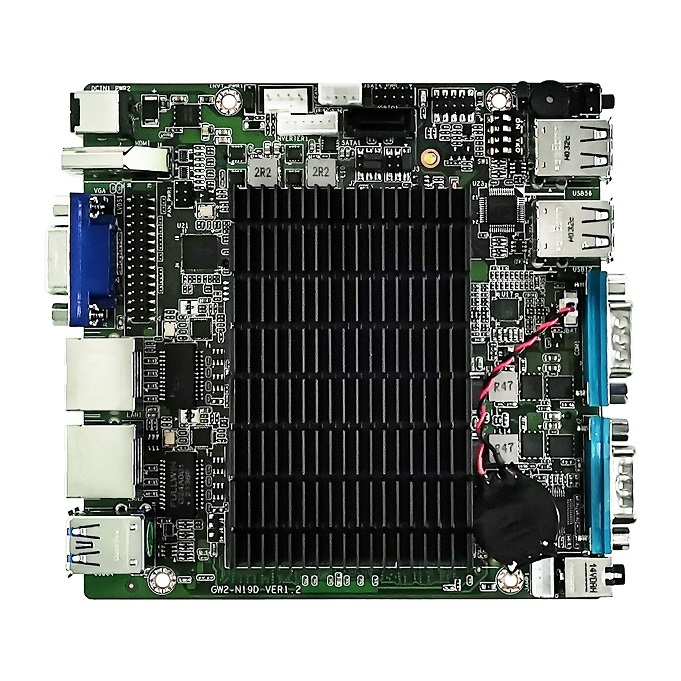

Model Name

GW2-N19D VER:1.1

Processor

Intel Bay Trail-M/D Serial processor

CPU

J1900

Memory

Technology

Singal DDR3L 1333MHz , max 8GB,1 x 204Pin DDR3L SO-DIMM(Non-ECC)

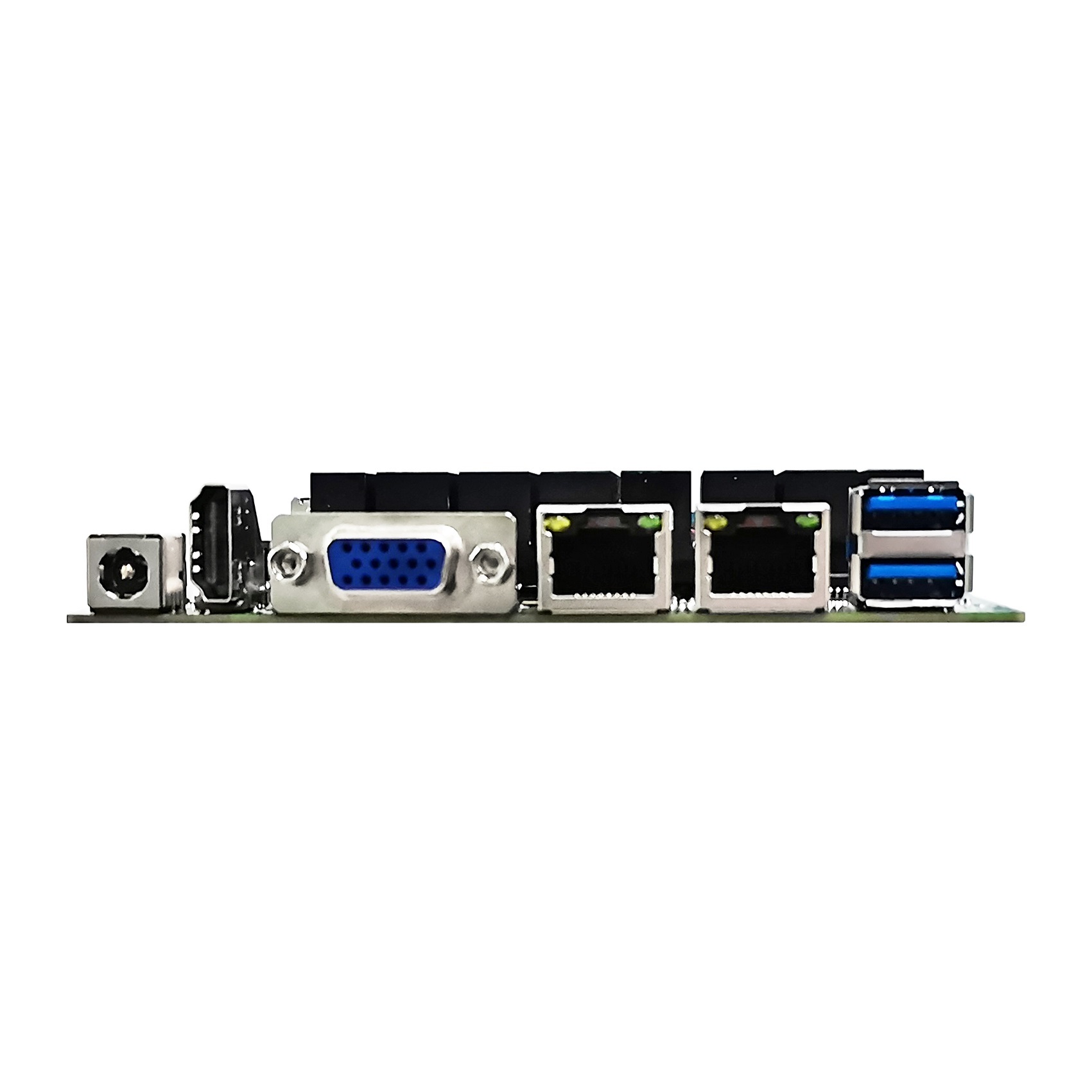

Rear I/O

Power slot

1*standard 2.5mm DCpower slot

HDMI

Standard D slot,Support HDMI1.2,Max,resolution:2560*1600@60Hz

VGA

Standard DB15 slot,max Support resolution 2560*1600@60Hz

Ethernet

2*1000M lan, RTL8111H lan chipset

USB slot

2*USB slot (The USB 3.0 connector/header has a USB 2.0 slot located above it, and a USB 3.0 slot positioned below it. )

Audio

1*two-in-one slot (Line-out,Mic)

Inner connector

USB slot

5*USB2.0slot

COM slot

2*(COM all Support RS232 mode,COM1 Support RS485 model)

LVDSslot

Support singal (dual)channel 18(24)bit,Max resolution 1920*1200@60Hz

Audio Amplifier

1*4Pin 2.0mm white slot , Support 2x5W 2Ω speakers

Mini-PCIe

1x Full-Length Mini PCIe Slot (Supports WIFI, 4G)

MSATA

Support SSD

SATA slot

1*7Pin SATAslot Support SATA 2.0

GPIO

8-channel bidirectional 5V

Watchdog

Output

System Reset

interval

Programmable from 1 to 255 seconds

Wattage

Max wattage

Standby Power Consumption: 9.6W
Full Load Power Consumption: 30W

Environment

temperature

work temperature:-10～70℃ moisture:5%~95% storage temperature:-40~85℃ moisture:5%~95%

Form size

size

120 mm x 120 mm
