Intel Atom Bay Trail-D/M Mini-ITX with VGA/2*EDP,6 COM,Dual LAN,MSATA,WIFI/4G Module,DDR3L,DC 12V Input
Features (product features)
▲ Support Intel Bay Trail-M/D series processors.
▲ Support DDR3L memory, up to 8GB 1333MHz SDRAM.
▲ Support stereo dual-channel ALC887 chip with onboard power amplifier.
▲ Support 6 serial ports, 1 parallel port and 1 PS2 pin interface.
▲ Support 1 USB3.0 and 7 USB2.0.
▲ support MSATA
▲ Support Mini PCIE expansion slot (including 8pin SIM card slot)
▲ Support one 7Pin SATA interface.
▲ Support two RJ45 Gigabit network card interfaces.
▲ Support VGA/2*EDP display interface, and support synchronous dual display.
▲ Support single power supply 12V input.
▲ Support Windows7, Windows10 32/6
| Model Name | GW7-T19D-2E VER:1.1 |
| processor | Intel Bay Trail-M/D series processors |
| CPU | J1900 |
| memory | technology | Single channel DDR3L 1333MHz |
| maximum capacity | 8GB |
| Memory slot | 1 x 204Pin DDR3L SO-DIMM(Non-ECC) |
| Post I/O | power source | 1 standard 2.5mm DC power socket |
| VGA | Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz. |
| Ethernet | 1 or 2 gigabit network cards (LAN1 and USB2.0 are laid together), RTL8111H network card chip. |
| USB port | 2 USB interfaces (USB2.0 interface above USB3.0 cradle and USB3.0 interface below cradle) |
| Audio | 1 (Mic-in, Line-out) |
| Internal connector | USB port | 6 USB2.0 interfaces (one FUSB can switch out two USB2.0 interfaces) |
| PS2 interface | 1*7Pin 2.0mm white socket, which can connect PS2 keyboard and PS2 mouse. |
| serial port | 6 (serial ports all support RS232 mode, among which COM2 and COM3 support RS422 and RS485 mode) |
| parallel port | 1 2*13Pin pin |
| JVGA | 1*12Pin pin, the maximum supported resolution is 2560 * 1600 @ 60hz (VGA and JVGA can only be selected). |
| EDP interface | Support two 4 LANE eDP channels, and support the maximum resolution of 1920x1200@60HZ. |
| Audio | 1 2*5Pin pin (Mic-in, Line-out) |
| power amplifier | 1*4Pin 2.0mm white socket, supporting 2 speakers with 5W2. |
| Mini-PCIe | 1 Mini PCIe slot of full-length card (supporting WIFI and 4G modules) |
| MSATA | Support SSD hard disk |
| serial ata | 1 7Pin SATA interface, supporting SATA 2.0 |
| GPIO | 8-way bidirectional 5V |
| PWR interface | 1 standard 2x2PIN power socket |
| Watchdog | output | system reset |
| space | Programmable for 1-255 seconds |
| power consumption | Maximum power | Standby power consumption: 8.4W Full load power consumption: 25.2W |
| environment | temperature range | working environment | Storage environment |
| Temperature:-10 ~ 60℃ Humidity: 5%~95% | Temperature: -40~85℃ Humidity: 5%~95% |
| Physical size | measure | 170 mm x 170 mm |
|
|

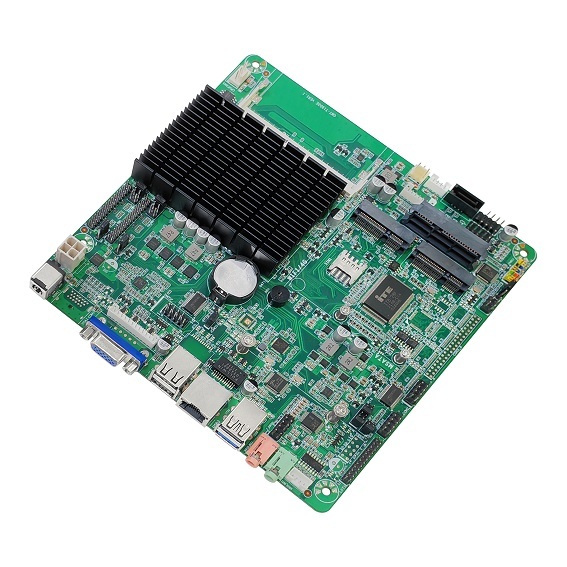

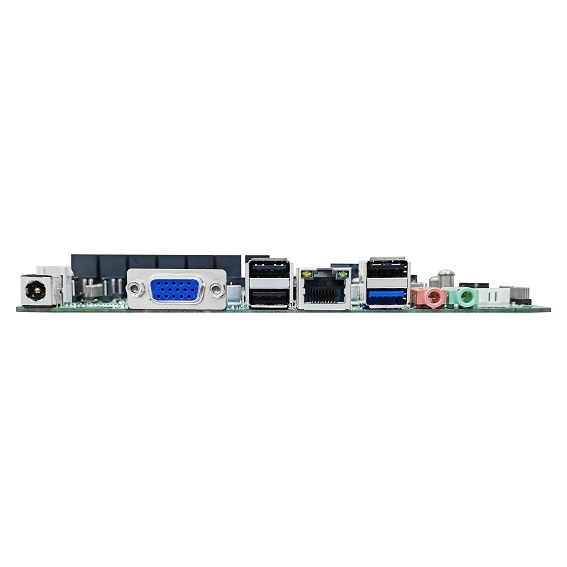

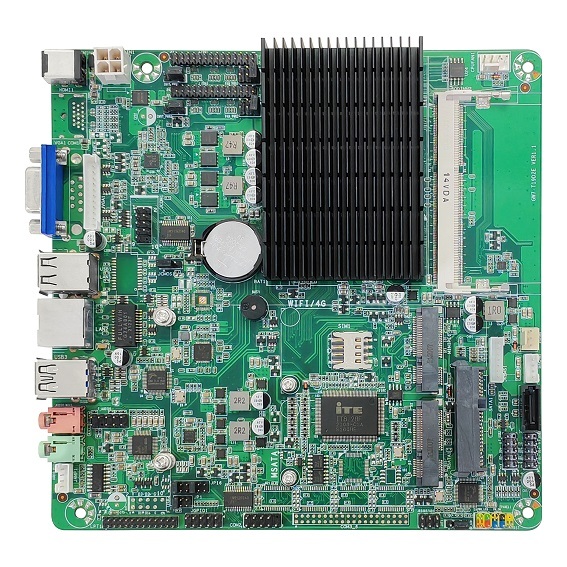

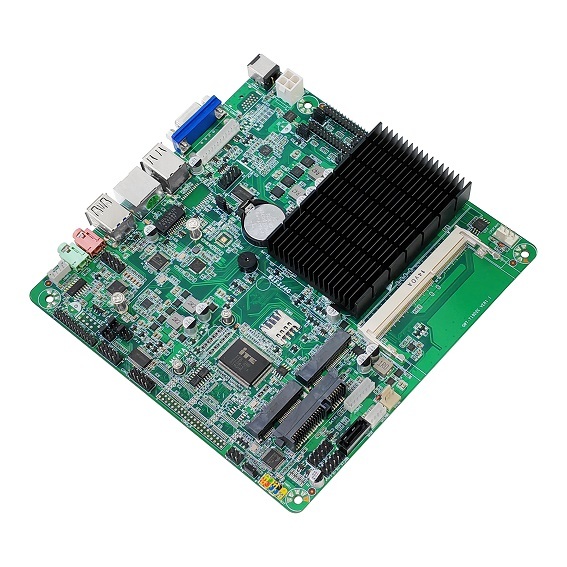

GW7-T19D2E-V1.1 J1900 mini ITX industrial motherboard Images
|
