tarjeta madre desktop mainboard Xeon E5 LGA2011-3 DDR3 dual channel 128GB gaming mother board computer X99 pc motherboard
Advantage:
l Processor supporting Intel Xeon E5 LGA2011-3 pin
l Support for four-channel DDR3 memory
l 2 M.2 (NVME protocol *1+SATA protocol *1)
l Support 6* SATA3.0 interface
l The rear IO provides 2 USB 3.0 and 6 USB2.0 interfaces.
l Built-in pins can expand 2 USB 3.0 and 2 USB2.0 interfaces.
l 1 x Gigabit network card, supporting PXE and network wake-up function.
l 6-layer PCB backplane, 8-phase power supply
l 3* Full-length PCIE slot, 1 * PCIE X4 slot
desktop computer tarjeta madre X99-P8D3-V2.1 Features:
| Model | X99-P8D3 V2.1 |
| Motherboard chipset | Intel Q87 |
| CPU | Intel Xeon E5 LGA2011-3 processor (with DDR3 memory support) |
| | For example: E5-2666v3/E5-2678v3/E5-2696v3/E5-2686v4/E5-2696v4, etc. |
| memory | 4*DDR3 quad DIMM, 1333/1600/1866 MHz; Maximum support 128G (32G*4) |
| save | 2*M.2 slots (CN2:PCIE 3.0 X4, CN3: SATA 3.0); 6*SATA3.0 interface; (CN3 and SATA0 multiplexing) |
| Functional pin | 1*FPANEL panel pin; 1*4Pin CPU fan; 2*3Pin+1*4Pin SYS fan; |
| 1*JLPC； 1*CMOS； 1*JME； 1*TPM pin; |
| network | 1*RJ45+ LED interface |
| Network card chip | RTL8111H gigabit network card chip |
| PS/2 | 1 KB interface and 1 MS interface. |
| audio frequency | 1*Line out,1*MIC In,1*Line in； 1*F_Audio built-in pin |
| Audio chip | Realtek ALC897 HD Audio Chip |
| Usb interface | IO interface: 2*USB3.0, 6*USB2.0; |
| Built-in pins: 1 set of USB2.0 pins (2 USB2.0 ports can be expanded) |
| 1 set of USB3.0 pins (2 USB3.0 ports can be expanded) |
| PCIE | PCIE1/3 :PCIE X16 3.0 slot (from CPU); PCIE4: PCIE X4 3.0 slot (from CPU) |
| PCIE2: PCIE X1 2.0 full-length slot (from PCH) |
| Working temperature | -10℃~60℃ |
| Working humidity requirements | 10%~90% without condensation |
| Storage temperature | -25℃~70℃ |
| power consumption | Standby power consumption: 75~80W Full load power consumption: 450~500W (for reference only) |
| (If you want to install hardware equipment with high power consumption, please use a high-power power supply.) |
| Power input | 24Pin+8Pin ATX power socket |
| Product size/specification | ATX motherboard; 215.77 x 282.93 mm, 6-layer PCB. |
FAQ
Q1. Can I get a sample for testing?
Re: Yes of course you can. After paid for sample cost and shipping, we will delivery it according to your request.
Q2. What's your MOQ?
Re: MOQ 1 pcs. EXCALY contact information:Whatsapp:+8615008476368, Wechat:15008476368, skype:sophiagiga

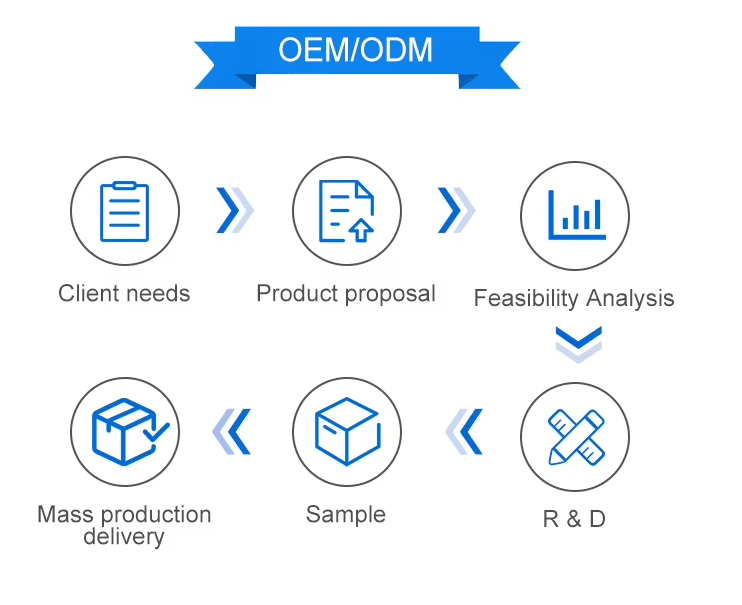

Q3. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The main advantage of our factory is customization,The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q4. Can you print my logo on motherboard ?
Re: Yes, we can silkscreen logo on heatsink, bios as open computer show your Logo
MOQ is 300 pcs.if you need with PCB logo, then need 1K pcs for each model.
Q5. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range-10℃~60℃, storage temperature range-40℃~70℃
Q6. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on model and order qty) ,we will test the model
to insure the quality before shipping.
Q7. What payment method do you accept?
Re: We accept T/T,Paypal, Western Union
Q8. How will you delivery the device to me?
Re: Via DHL /Fedex / UPS / EMS by default, or send it to you according to your request.
Q9.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without repair cost (except change new accessories)
