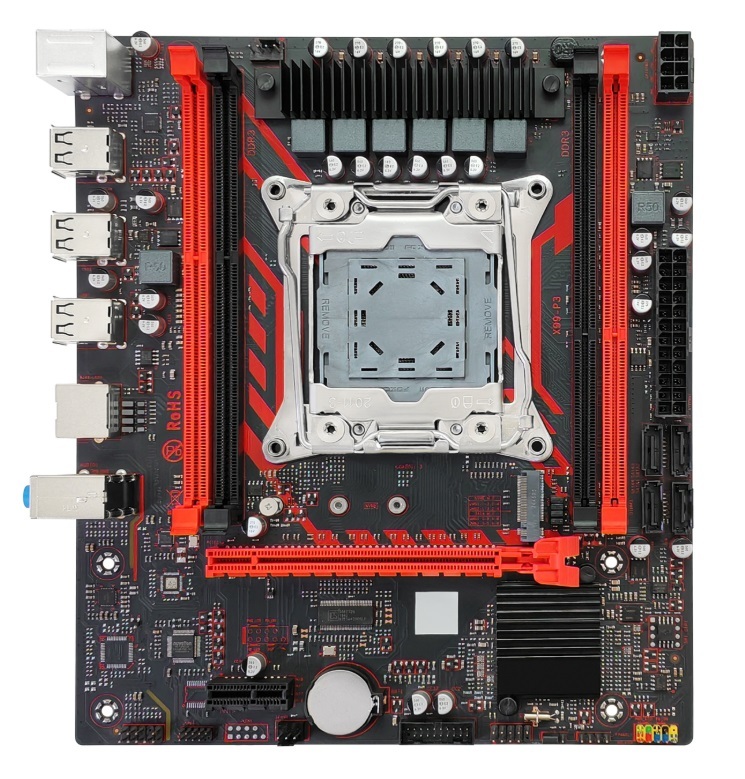

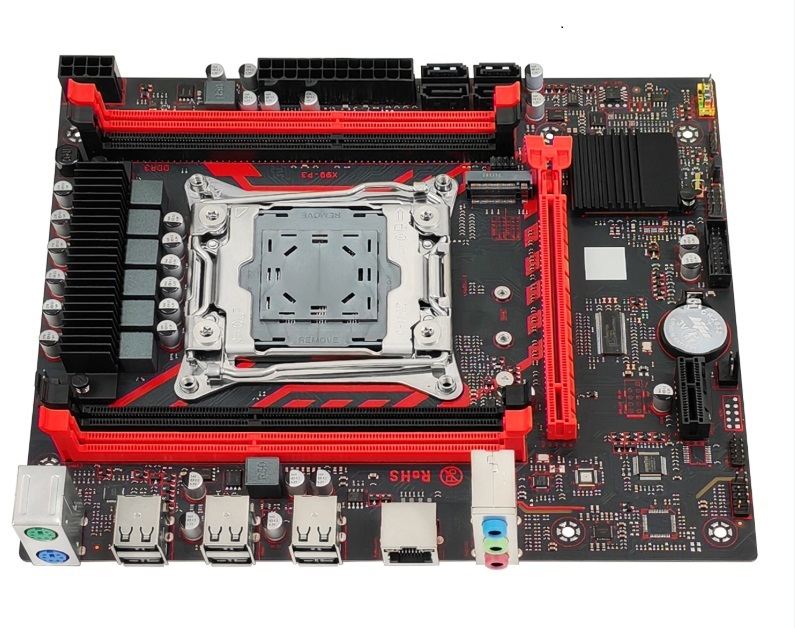

X99 Motherboard LGA 2011-3 for Xeon 2680V3 CPU 16GB (2*8G) DDR4 M-ATX NVME M.2 motherboard Combos
intel motherboard X99-P3 V9.0 Model Advantage:
l Support LGA 2011-3 Intel series processors
l Support dual-channel DDR3 DIMM memory
l 4* SATA socket
l 1x M.2 2280/2260/2242 Slot (supporting NVME/SATA mode)
l The rear interface provides 6xUSB2.0
l Built-in pins can be extended by 4 USB2.0.
l 1 x PS2 keyboard and mouse
l 1 x Gigabit network card, supporting PXE and network wake-up function.
l 1 x PCIE X16 slot, 1 x PCIE X1 slot.
l Support 24Pin+8Pin ATX power input.
l Windows 7,Windows 10,Windows11

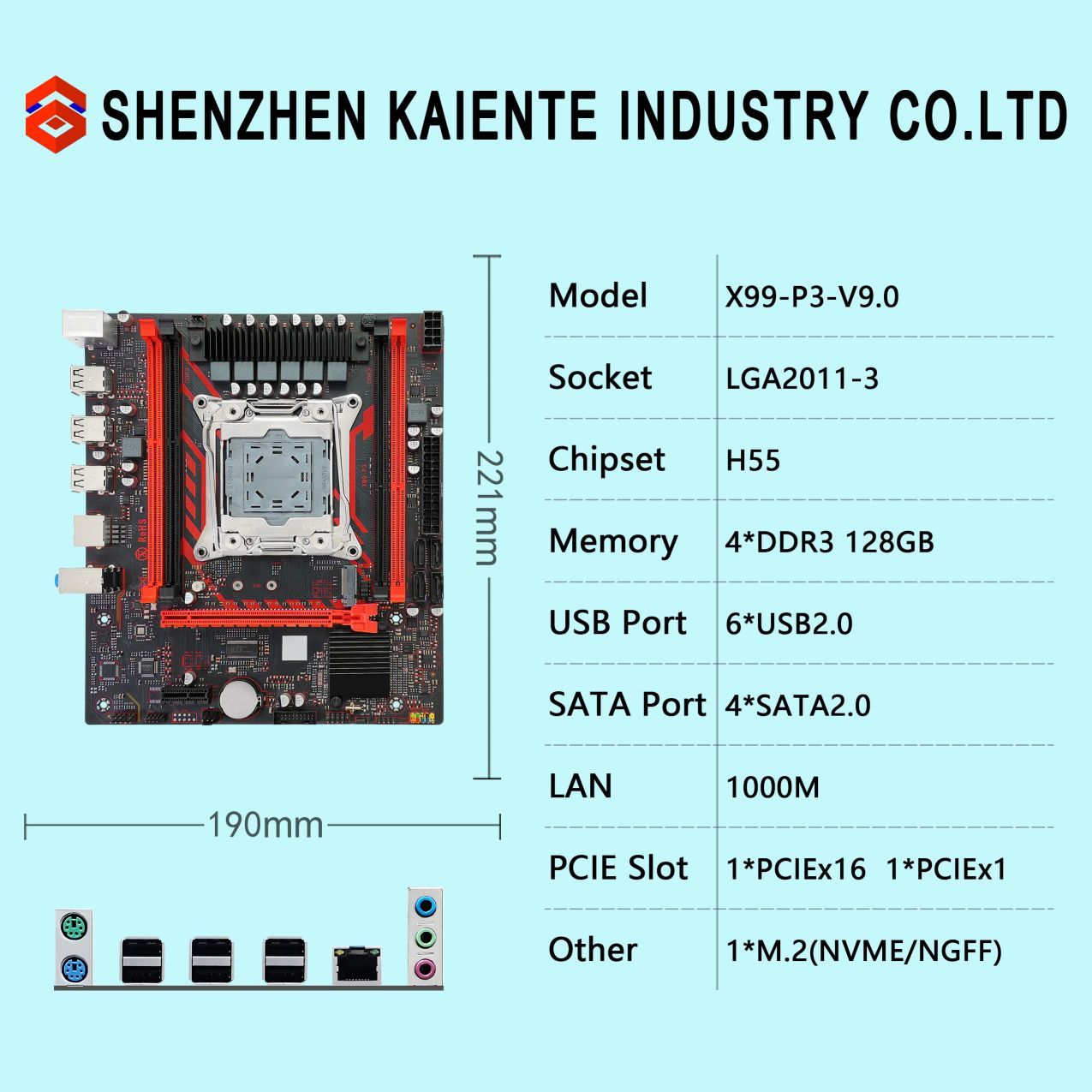

intel motherboard X99-P3 V9.0 Features:
| Motherboard chipset | Intel H55 |
| CPU | InteI LGA 2011-3 pin series CPU |
| | Optional: E52673v3/E52676v3/E52666v3/E52678v3/E52696v3/E52686v4/E52696v4 and so on. |
| memory | 4*DDR3 DIMM, 1866MHz/128G, maximum support of 128G (dual channel, red slot as the main channel) |
| Cunzhu | 1* M.2 slot (NVME and SATA protocols, need to switch the cap); 4*SATA2.0 interface |
| Display interface | PCIE1 X16 slot is connected to the display card. |
| network | 1*RJ45 interface |
| Network card chip | Realtek gigabit network card chip |
| PCIE slot | 1*PCIE X16 slot; 1*PCIE X1 slot |
| audio frequency | 1*Line out； 1*Mic In； 1*Line In； 1*F_Audio built-in pin |
| Audio chip | USB digital audio chip CJC6811A |
| serial port | / |
| PS/2 interface | 1*PS2 keyboard mouse interface |
| Usb interface | Rear interface: 6*USB2.0 Built-in pins: 1 set of USB2.0 pins /1 set of USB3.0 pins (4 USB2.0 ports can be expanded). |
| Functional pin | 1*FPANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CPU fan; 1*3Pin SYS fan; |
| Power input | 24Pin+8Pin ATX power socket |
| product size | 190 x 221 mm x 4L； M-ATX motherboard |
| Working temperature | -10℃~60℃ |
FAQ
Q1. Can I get a sample for testing?
Re: Yes of course you can. After paid for sample cost and shipping, we will delivery it according to your request.
Q2. What's your MOQ?
Re: MOQ 1 pcs. EXCALY contact information:Whatsapp:+8615008476368, Wechat:15008476368, skype:sophiagiga
Q3. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The main advantage of our factory is customization,The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q4. Can you print my logo on motherboard ?
Re: Yes, we can silkscreen logo on heatsink, bios as open computer show your Logo
MOQ is 300 pcs.if you need with PCB logo, then need 1K pcs for each model.
Q5. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range-10℃~60℃, storage temperature range-40℃~70℃
Q6. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on model and order qty) ,we will test the model
to insure the quality before shipping.
Q7. What payment method do you accept?
Re: We accept T/T,Paypal, Western Union
Q8. How will you delivery the device to me?
Re: Via DHL /Fedex / UPS / EMS by default, or send it to you according to your request.
Q9.What's the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without repair cost (except change new accessories)
