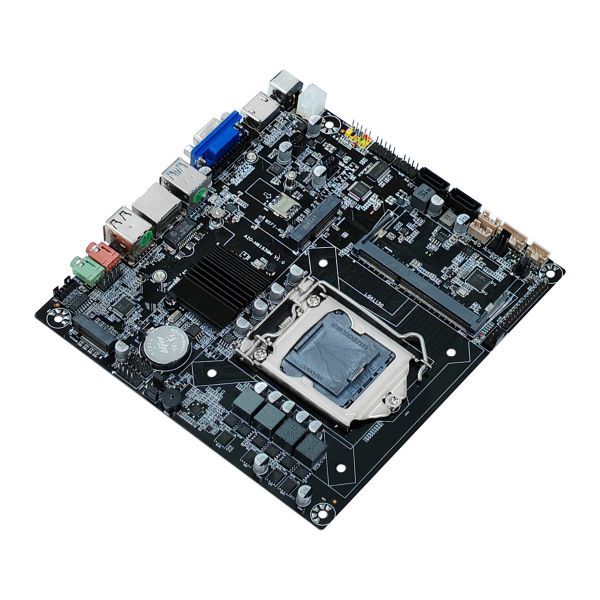

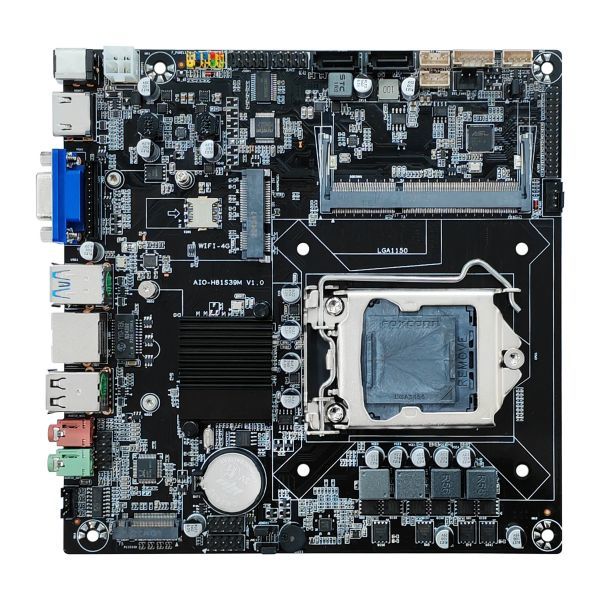

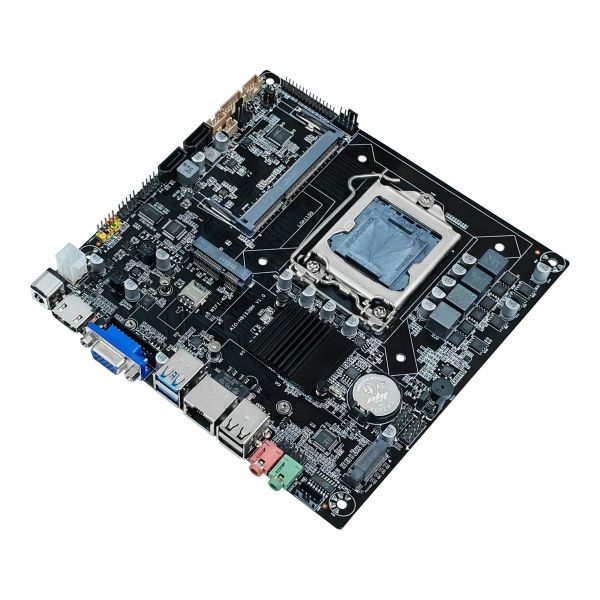

H81 Chipset Lga 1150 AIO DDR3 Intel 4th GEN Motherboard AIO-H81S39M-V1.0

Model Name

AIO-H81S39M Ver:1.1

processor

Intel 4th Generation Celeron, Pentium, I3, I5 and I7 Series Processors

Southbridge

H81 Chipset

memory

technology

Single channel DDR3 1600MHz

maximum capacity

8GB

Memory slot

1 204 Pin DDR3 SO-DIMM(Non-ECC) memory slot

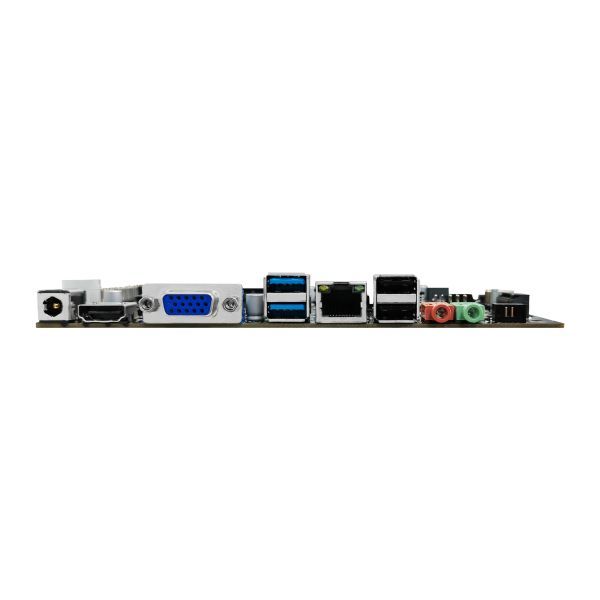

Post I/O

power source

1 standard 2.5mm DC power socket, supporting DC12V~19V input.

HDMI

Provide one standard D socket.

VGA

Standard DB15 socket

Ethernet

1 Realtek Gigabit NIC

Audio

1 (Mic-in, Line-out)

USB port

2 USB 3.0, 2 USB2.0

Internal connector

USB port

4 (one FUSB can switch out two USB2.0 interfaces)

serial port

1 (RS232 mode only)

power amplifier

1*4Pin black socket, supporting up to 2 speakers with 5W2.

F_Audio

1 2*5Pin pin (Mic-in, Line-out)

serial ata

2 SATA interfaces, and provide 2 1*4Pin power supply interfaces (1 SATA2.0 and 1 SATA3.0).

LVDS interface

Support single (dual) channel 18(24) bits

JVGA

1*12Pin pin (VGA and JVGA can only be selected)

M.2

Support NVME/NGFF M.2 hard disk.

Mini PCIe

Support WIFI/4G module

PWR interface

1 2*2Pin power socket, supporting DC12V~19V input.

power consumption

Maximum power

Standby power consumption: 11.4W Full load power consumption: 98.8W w.

environment

temperature range

working environment

Storage environment

Temperature:-10 ~ 70℃ Humidity: 5%~95%

Temperature: -40~70℃ Humidity: 5%~95%

DC power supply

DC12V~19V power input

Physical size

measure

170 mm x 170 mm
